A 2.3kW charger sounds simple: more power should mean less waiting.
For a compatible high-capacity Surron or Talaria battery, higher charging power can reduce the time spent in the main charging stage. But 2.3kW does not create one universal charging time.
Battery energy, voltage, current limits, temperature, BMS behavior and the constant-voltage finishing stage all affect the result.
What 2.3kW Means
Electrical power is approximately:
Voltage x current = watts
A charger producing 2,300W could reach that power through different voltage-and-current combinations. The actual setting must match the battery.

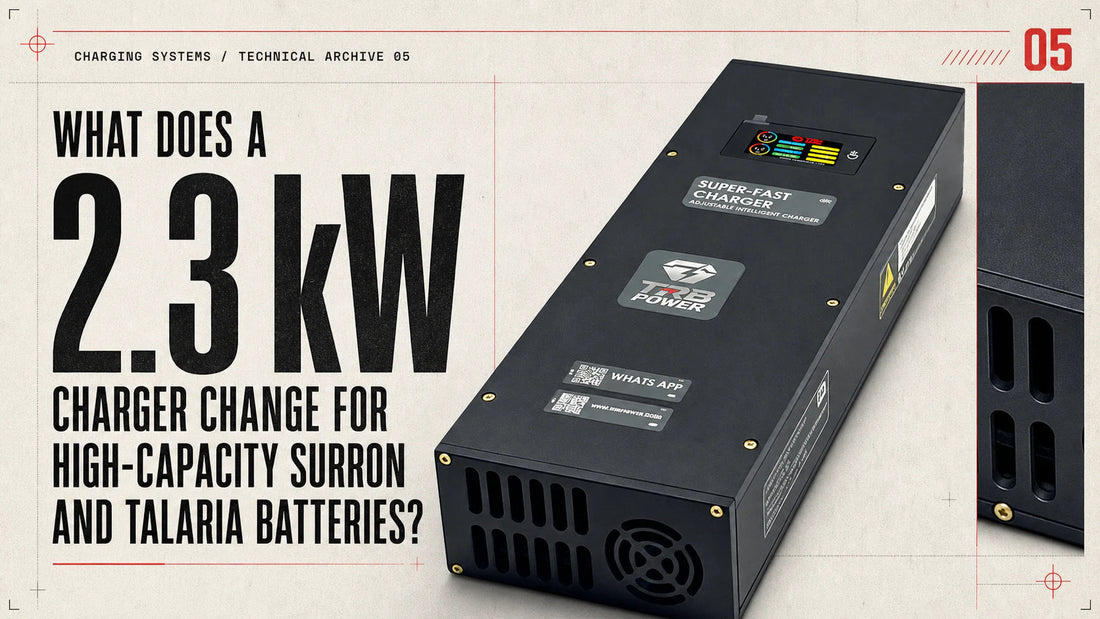

The TRB POWER Apex CH30 Ultra provides up to 2300W total output and configurable charging parameters for professionally matched lithium battery systems.
The word "up to" matters. The battery may require a lower current or voltage combination.
Battery Energy Determines the Work
Battery capacity in watt-hours describes the approximate stored energy:
Nominal voltage x amp-hours = watt-hours
A larger Wh battery contains more energy and generally takes longer to charge at the same charger power.
As a simplified example, adding 3kWh of energy with a 2.3kW charger would require at least:
3kWh / 2.3kW = approximately 1.3 hours
That is an idealized calculation. Real charging takes longer because of conversion losses, current limits and the constant-voltage stage.
Why Charging Slows Near Full
Lithium battery charging commonly includes:
- A controlled initial or pre-charge stage when required
- A main constant-current stage
- A constant-voltage stage as the battery approaches full charge
During the final stage, current normally reduces while voltage remains controlled. This protects the cells and supports balancing, but it means the final percentage can take proportionally longer.
A charging-time estimate that ignores the constant-voltage stage will usually be too optimistic.
The BMS Sets a Hard Boundary
The battery-management system monitors pack voltage, current and temperature. It may reduce or stop charging when a limit is reached.
The charger setting must not exceed:
- Cell manufacturer's approved current
- Battery manufacturer's recommendation
- BMS charge-current limit
- Connector rating
- Cable rating
A 2.3kW charger cannot safely force a battery to accept more power than its charging path supports.
Temperature Changes Charging Behavior
Cold or hot cells may accept less charging current. Some BMS designs reduce current or block charging outside an approved temperature range.
Charging in a controlled environment improves repeatability. Keep the battery and charger dry, allow ventilation and follow the battery manufacturer's temperature guidance.
AC Supply Capacity Matters
High output power requires adequate AC input.
Before operating a 2.3kW-class charger, confirm:
- Wall-circuit rating
- Mains voltage and frequency
- Plug and socket rating
- Cable condition
- Grounding
- Regional electrical requirements
Do not assume a lightweight extension lead is suitable for sustained high-power charging.
The Apex CH30 Ultra supports 100-240V AC input. Under the specified maximum-load test conditions, maximum efficiency is up to 94% at 110V AC and up to 97% at 240V AC. Actual input demand depends on the final output configuration.
What High-Power Charging Can Improve
When the complete system supports it, higher charger output can provide:
- Shorter turnaround between rides
- More practical charging of high-capacity batteries
- Better workshop scheduling
- Faster preparation for fleet or event use
- Reduced dependence on overnight charging
It does not automatically improve battery range, power or top speed. The charger only replenishes the battery.
Information Needed for a Charging-Time Estimate
Provide:
| Input | Why it is required |
|---|---|
| Battery Wh capacity | Determines total energy |
| Starting state of charge | Determines energy to replace |
| Maximum charge voltage | Defines charger voltage |
| Approved charge current | Sets usable charger current |
| BMS limit | Prevents overcurrent |
| Temperature assumption | Affects current acceptance |
| AC supply | Confirms available input power |
TRB POWER can then estimate a range rather than promise one fixed time.
Frequently Asked Questions
Does a 2.3kW charger always output 2.3kW?
No. Output depends on the configured voltage, current, battery state and charging stage.
Will it charge twice as fast as a 1.15kW charger?
Not necessarily. The main stage may approach that relationship when the battery accepts the power, but the constant-voltage stage and system limits reduce the difference.
Can I use the maximum current on any Surron or Talaria battery?
No. The battery, BMS, connector and cable must all approve the selected current.
Does faster charging reduce battery life?
Battery aging depends on cell chemistry, temperature, charge rate, state-of-charge window and use. Follow the battery manufacturer's approved charging current.
Request a Charging-Time Estimate
Send TRB POWER the battery Wh capacity, maximum charge voltage, approved current and expected starting state of charge.
Request a Charging-Time Estimate
Technical notice: Calculations in this article are educational estimates. Final charging power and time must be confirmed for the exact battery, charger configuration and AC supply.
