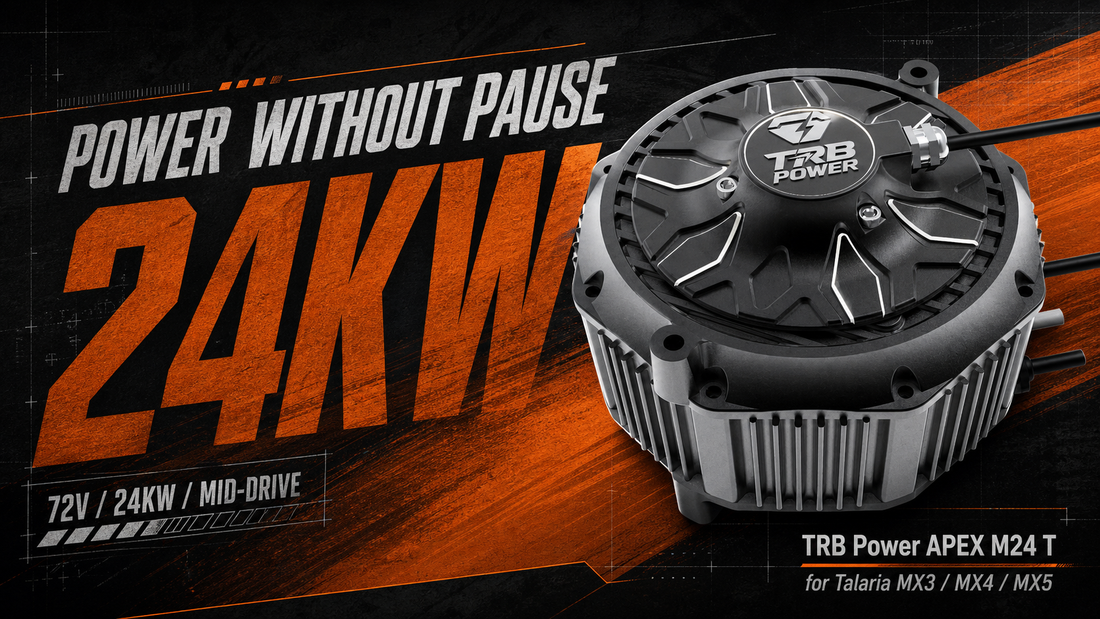

TRB POWER introduces the APEX M24 T, a 72V mid-drive electric motor engineered for Talaria MX3, MX4, and MX5 performance upgrades.
For riders and builders who want stronger acceleration, responsive torque, and a more capable electric drivetrain, the APEX M24 T combines 24kW peak power with a compact, lightweight motor package designed for the Talaria MX platform.
More Power for the Talaria MX Platform
The APEX M24 T is built around a 72V power system and delivers 12kW rated power with up to 24kW peak power. With 60N·m of peak torque and up to 650A peak phase current, the motor is designed to provide fast throttle response, strong launch performance, and confident output on climbs and demanding terrain.
Its rated speed is 5,200RPM, while the peak speed reaches 10,000RPM, giving builders more flexibility when matching the motor with a suitable controller, battery, and final-drive setup.
Compact Mid-Drive Design
In an electric motorcycle, motor placement affects more than power. It also influences balance, handling, and how efficiently the drivetrain transfers energy to the rear wheel.
The APEX M24 T uses a mid-drive installation layout and measures approximately Ø180 × 145mm. At only 9.8kg, it helps keep the Talaria MX chassis agile while providing a serious increase in power potential.
This compact form factor makes the motor a practical foundation for performance-focused Talaria MX3, MX4, and MX5 builds. Installation should always be checked against the vehicle frame, motor mounts, chain line, controller, battery, and electrical system before purchase.
Designed for Strong and Efficient Output
The APEX M24 T uses a permanent magnet synchronous motor configuration with five pole pairs. Its maximum efficiency is rated at ≥92%, helping reduce energy loss and support more effective power delivery across the operating range.
The motor includes Encoder (UVW) position feedback and an NTC temperature sensor. When paired with a compatible FOC controller, these systems help support accurate rotor-position detection, smooth control, and real-time temperature monitoring.
IP67 Protection for Real Riding Conditions
Performance riding can expose an electric drivetrain to dust, mud, rain, water crossings, and frequent washdowns. With an IP67 protection grade, the APEX M24 T is designed to provide a sealed motor solution for demanding riding environments.
The motor also features natural air cooling and Class F insulation rated to 155°C, supporting reliable operation when the system is correctly matched and properly tuned.
Key Product Information
| Brand | TRB POWER |
| Product | APEX M24 T Mid-Drive Electric Motor |
| Compatible platforms | Talaria MX3 / MX4 / MX5 |
| Rated voltage | 72V |
| Rated / peak power | 12kW / 24kW |
| Rated / peak torque | 22N·m / 60N·m |
| Rated / peak speed | 5,200 / 10,000RPM |
| Peak phase current | 650A |
| Maximum efficiency | ≥92% |
| Motor size / weight | Ø180 × 145mm / 9.8kg |
| Position sensor | Encoder (UVW) |
| Temperature sensor | NTC |
| Insulation class | Class F, 155°C |
| Protection grade | IP67 |
| Cooling | Natural air cooling |
| Color | Grey |
Match the Complete Power System
The APEX M24 T is a high-power motor and should be installed as part of a properly matched electric drivetrain. For best results, confirm compatibility with the 72V battery, BMS, FOC controller, wiring, connectors, gearing, and vehicle mounting hardware.
Because actual performance depends on controller settings, battery discharge capability, gearing, rider weight, terrain, and thermal management, professional installation and system tuning are recommended.
Build Your Talaria with APEX Power
With 24kW peak power, 60N·m peak torque, a 10,000RPM peak speed, and a lightweight IP67-sealed design, the TRB POWER APEX M24 T gives Talaria MX3, MX4, and MX5 builders a strong platform for the next level of electric performance.
