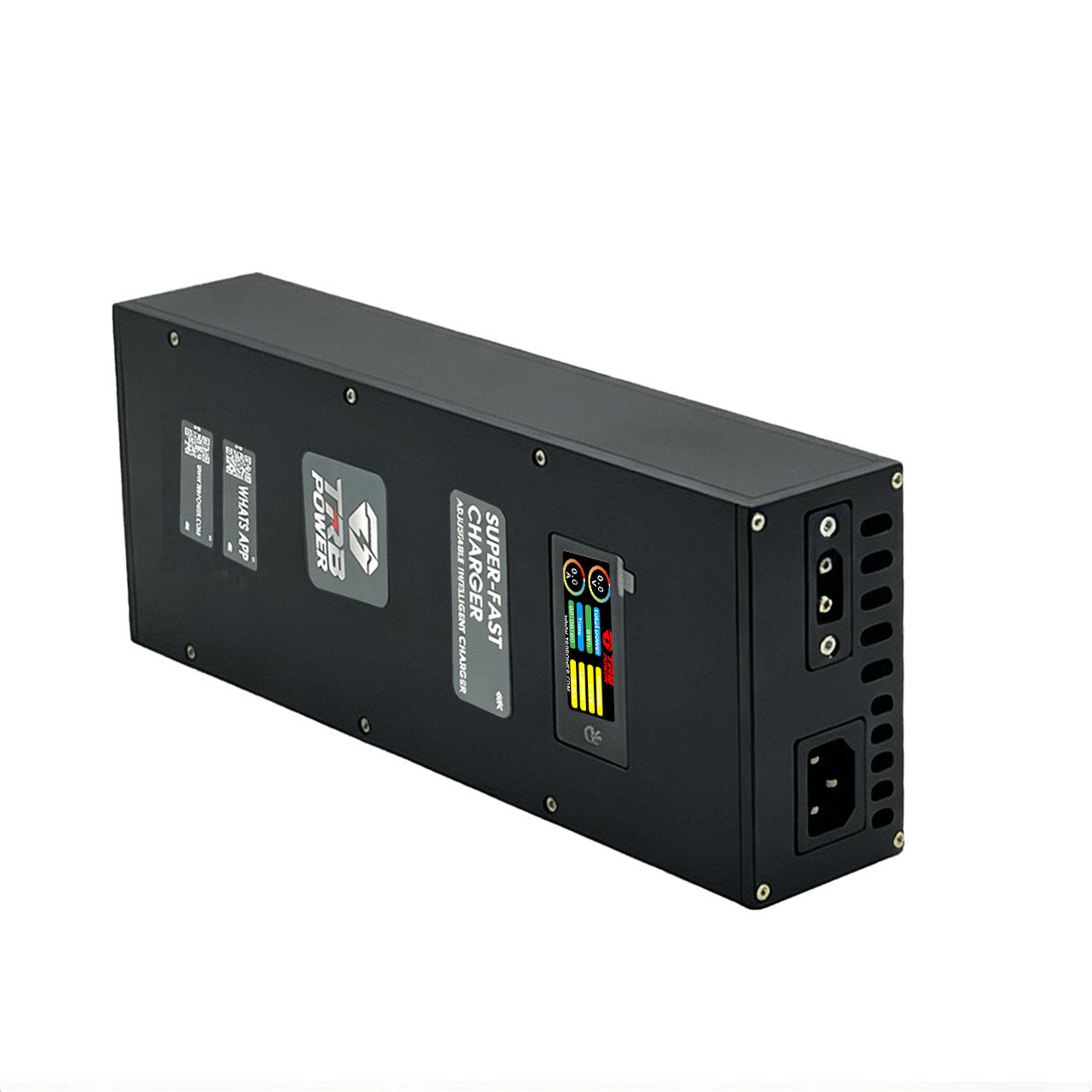

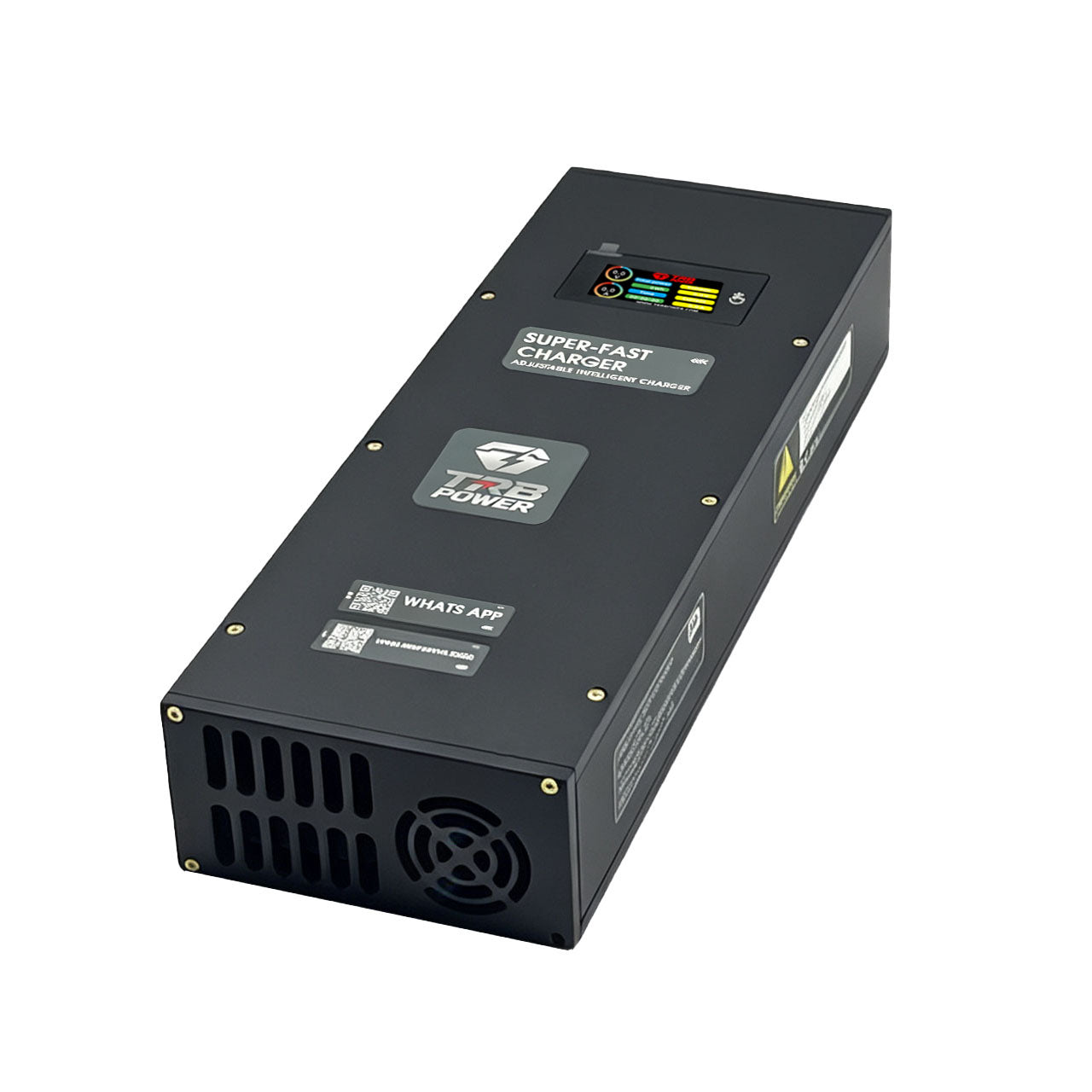

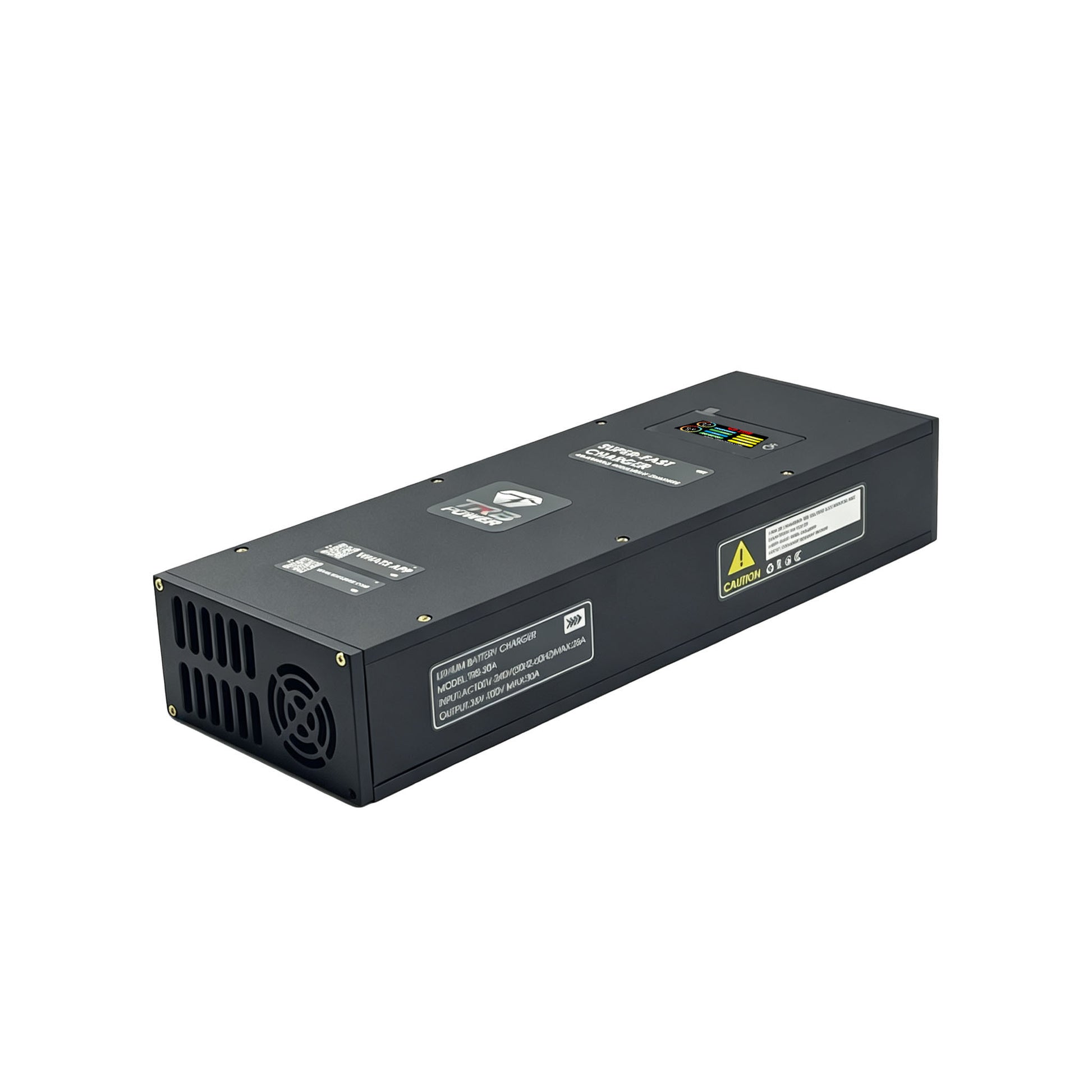

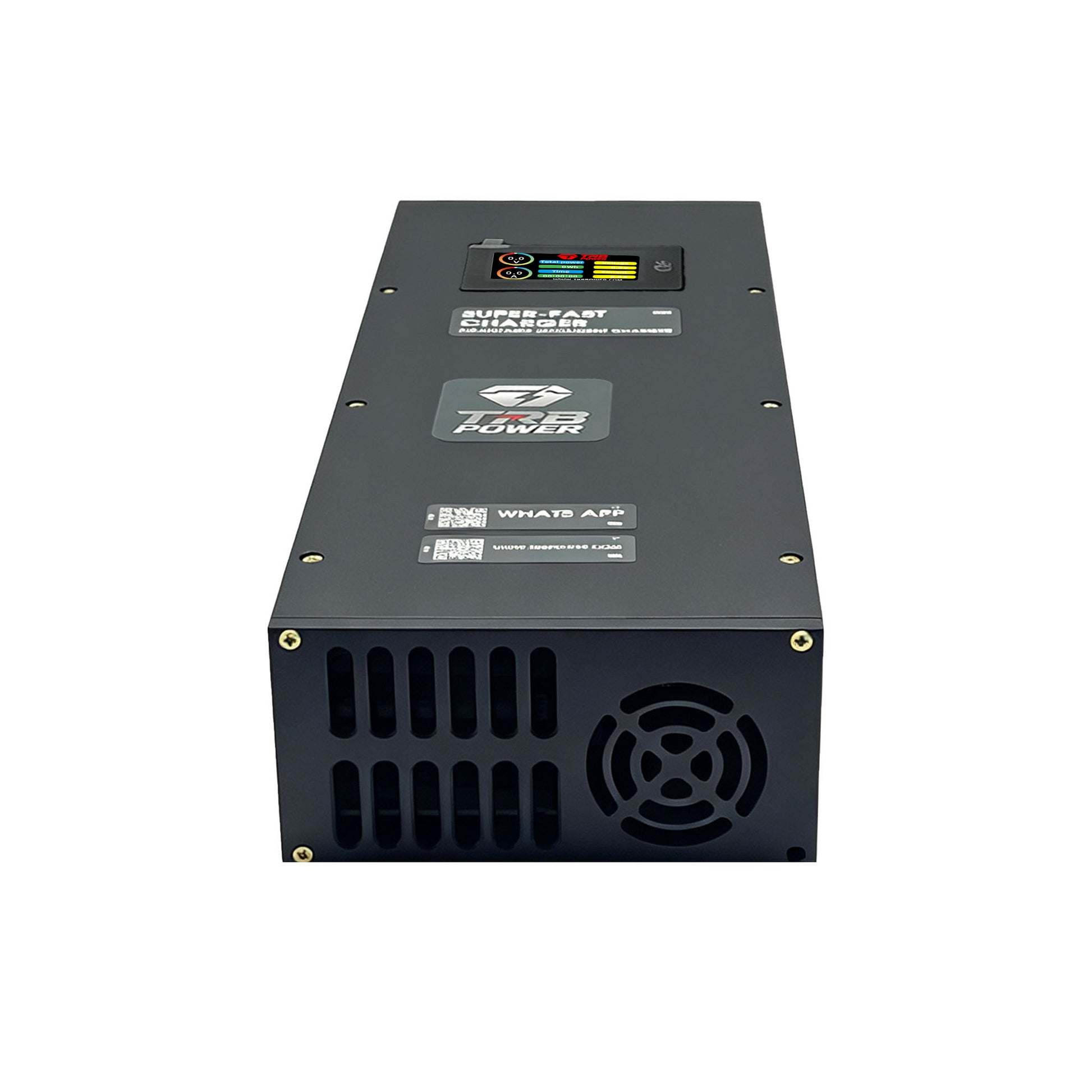

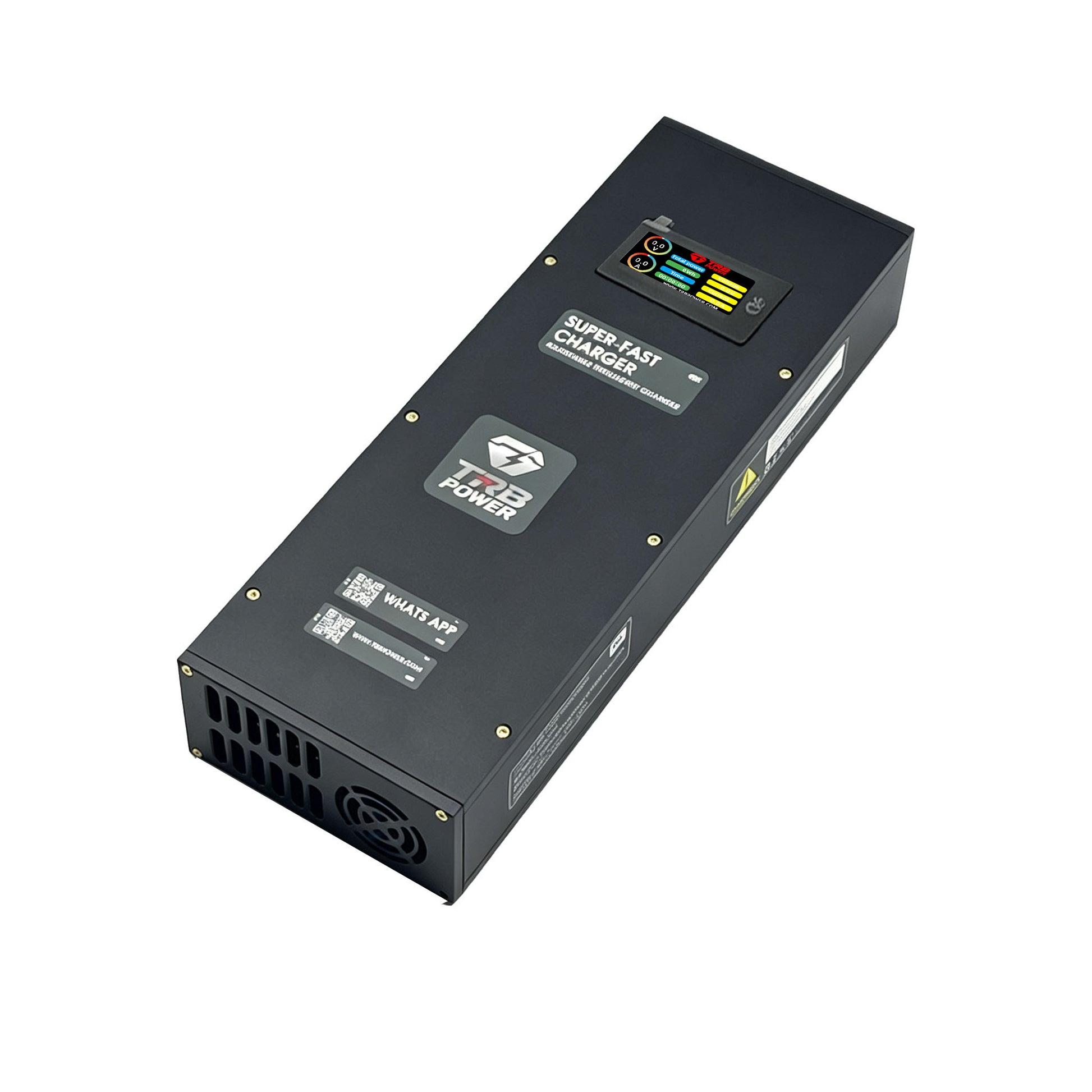

TRB Apex Series CH30 2300W Smart Lithium Battery Pack Charger, 100–240V AC, 10S–27S, 16–50A Adjustable Output

The TRB Apex Series CH30 is a high-power smart charger designed for lithium battery packs. With up to 2300W output power, wide 100–240V AC input, and adjustable charging current, it is ideal for electric vehicles, industrial power systems, mobility equipment, and custom battery pack applications.

Built with digital intelligent charging control, the charger provides precise voltage regulation and efficient power delivery up to 2300W. Multiple protection features help improve safety during operation, including short-circuit protection, overcurrent protection, overtemperature protection, overvoltage/undervoltage protection, and AC undervoltage protection.

Key Features

• Designed for 10S–27S LiFePO4 battery packs
• Wide AC input range: 100–240V, 50/60Hz
• Adjustable charging current: 5A–50A factory configurable
• Maximum output power: 2300W
• High efficiency: up to 94% at 110V AC, up to 97% at 240V AC
• Ripple and noise: max. 400mV P-P
• Operating temperature: -20°C to +50°C
• Fan convection cooling
• Charging status, voltage, and current indicators
• Suitable for transport by vehicle, ship, or aircraft

Protection Functions

• Short-circuit protection
• Overcurrent protection
• Input overvoltage/undervoltage protection
• Overtemperature protection
• AC undervoltage protection below 95V AC

Important Note

Charging parameters must be configured according to the battery pack requirements before shipment. Please confirm your battery voltage, battery chemistry, and required charging current before ordering.
